Chamber Shrink Wrapping Machines
Compact All-in-One Sealing and Shrinking for Low-to-Medium Volume Packaging
Chamber shrink wrapping machines combine L-sealing and heat shrinking beneath one hood, creating a finished pack in a single operator cycle without a separate tunnel. They are ideal for varied, lower-volume production where floor space, straightforward operation and presentation quality matter. Standard and high-hood configurations are available in two chamber sizes for products up to 450 × 650 × 250mm.
One-Step Process
Seal and shrink beneath one hood
Four Configurations
Two chamber sizes with standard or high hood
Compact Footprint
No separate heat tunnel required
Why Choose a Chamber Shrink Wrapper?

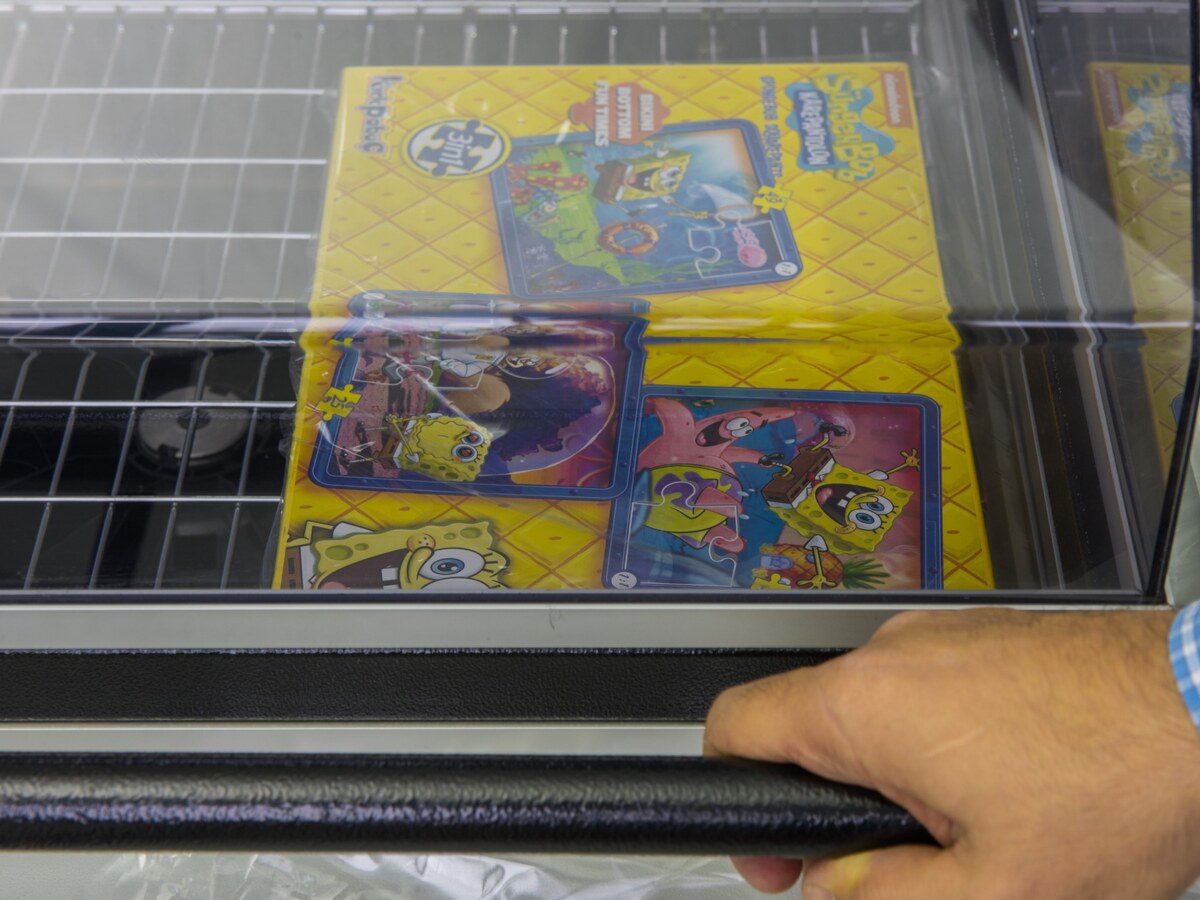

Seal and Shrink in One Cycle — The hood closes over the product to complete both the L-seal and heat-shrink stage, giving one operator a complete wrapping process in a compact machine.
Ideal for Varied Short Runs — Manual product placement and adjustable settings make chamber machines practical where pack sizes change regularly and continuous high-speed automation is unnecessary.
Professional Presentation — Controlled sealing and heat circulation produce clear, neatly finished packs for retail products, printed materials, giftware and grouped items.
Lower Space Requirement — With sealing and shrinking combined under one hood, the machine avoids the additional length and conveyor space required by a separate heat tunnel.
See Chamber Shrink Wrapping in Action

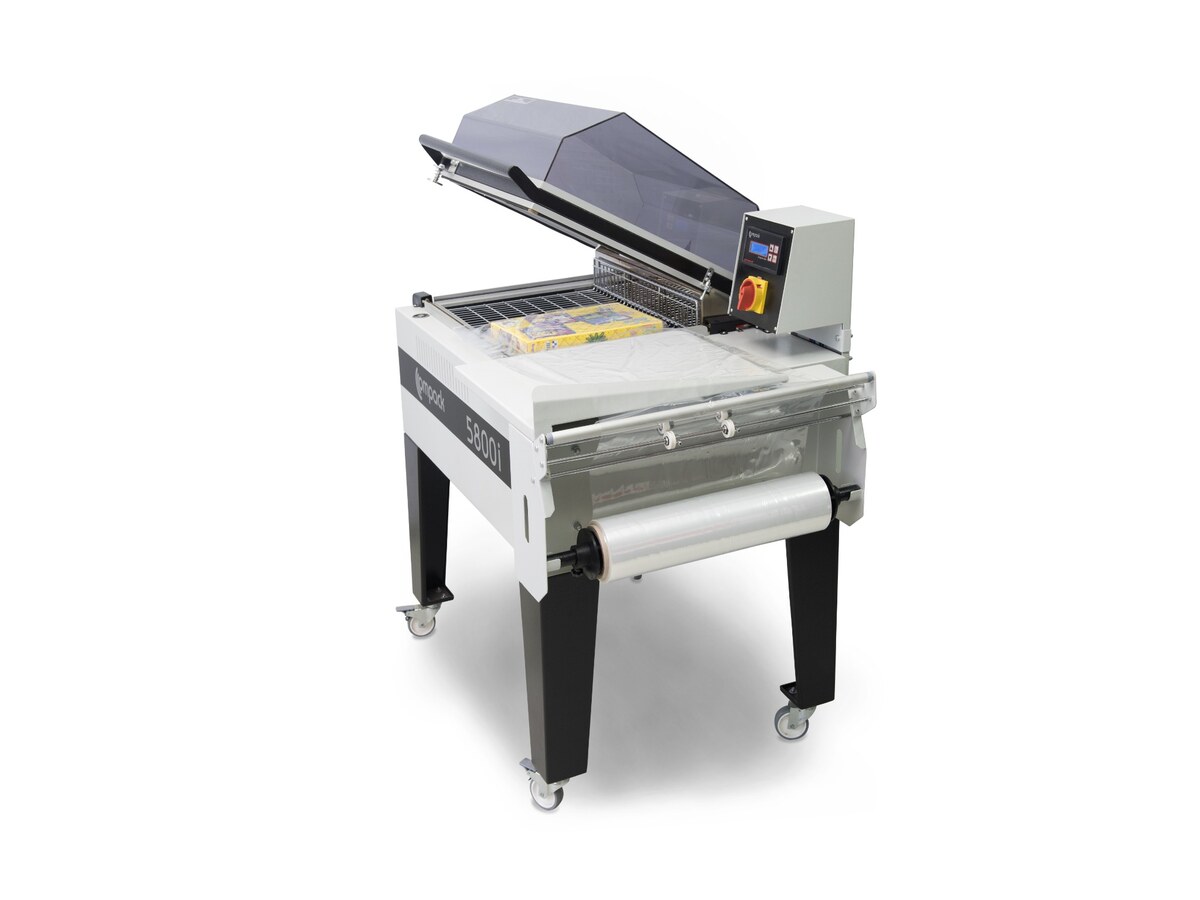

See film loading, product positioning, digital control and the combined seal-and-shrink chamber process.
Key Features of the Chamber Shrink Wrapping Range
One-step sealing and shrinking with digital adjustment, four size configurations and straightforward manual operation.
- Seals and shrinks the pack within one hood cycle
- Up to 5–10 packs per minute, depending on product and operator

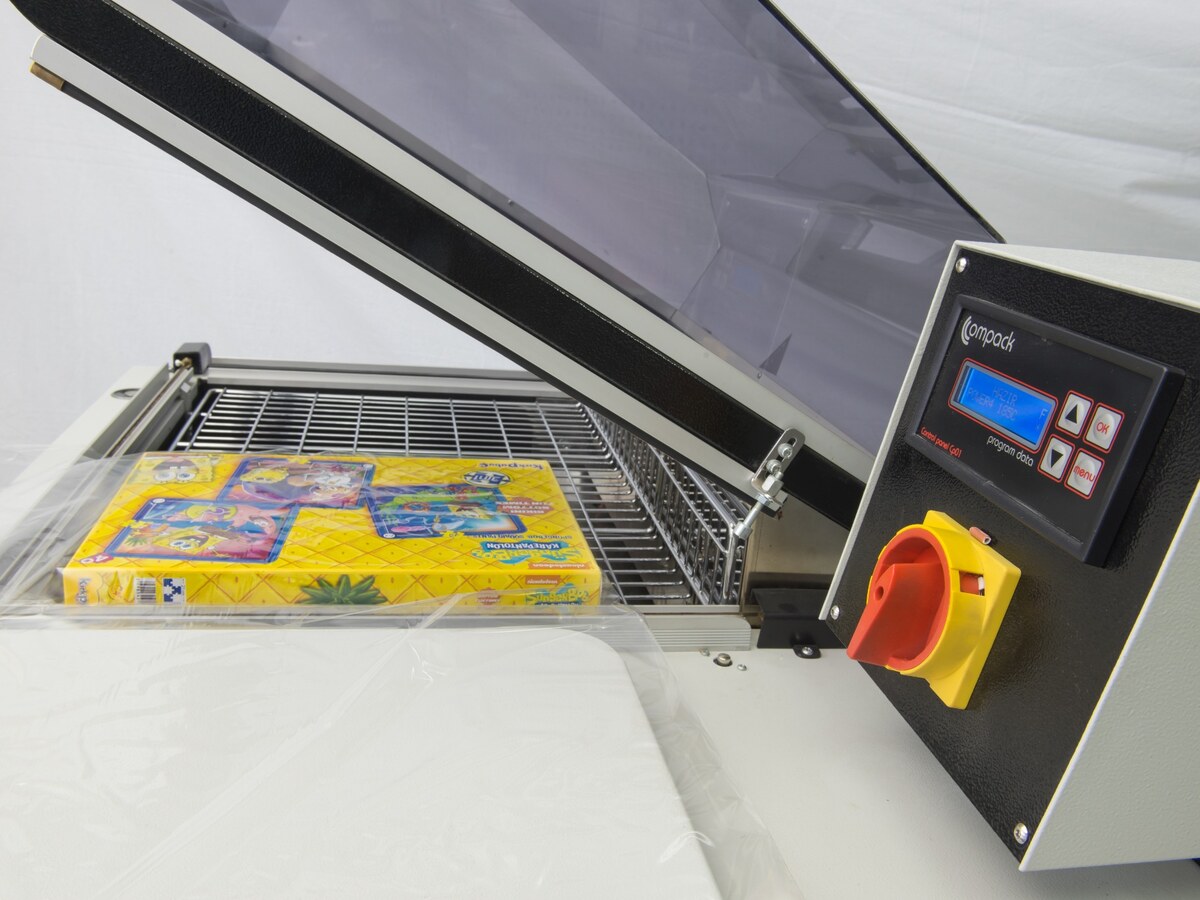

- Digital adjustment of shrink temperature and operating time
- Adjustable product support and loading tray
- Easy-access centre-folded film roll holder
- Standard chamber sizes of 580 × 440mm and 810 × 610mm
- Standard product height up to 150mm or high-hood versions up to 250mm
- Maximum film widths from 500mm to 900mm, depending on model
- Film perforation supports consistent air release and shrink appearance
- Castors allow the machine to be repositioned within the packing area
Technical Specifications
Current working specifications. Final requirements will be confirmed against the selected machine configuration.

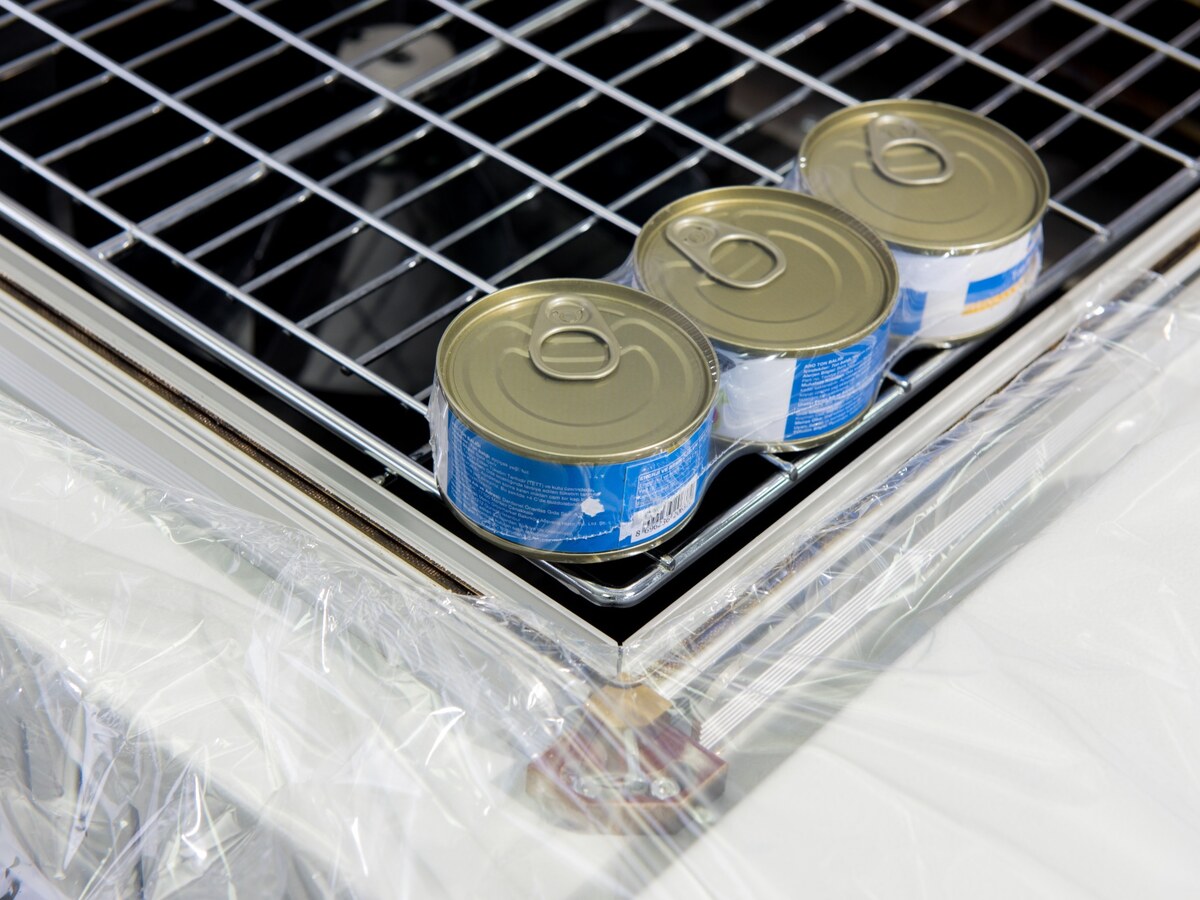

Ideal for Retail Products, Printed Materials, Giftware, Food Multipacks and Short Production Runs
Chamber machines suit operations needing a professional shrink finish at lower or variable volumes without the footprint of a separate L-sealer and heat tunnel.
