Tabletop Bagging Machine
SEVERN-DT — Automation-Ready Bagging in 200mm and 300mm Configurations

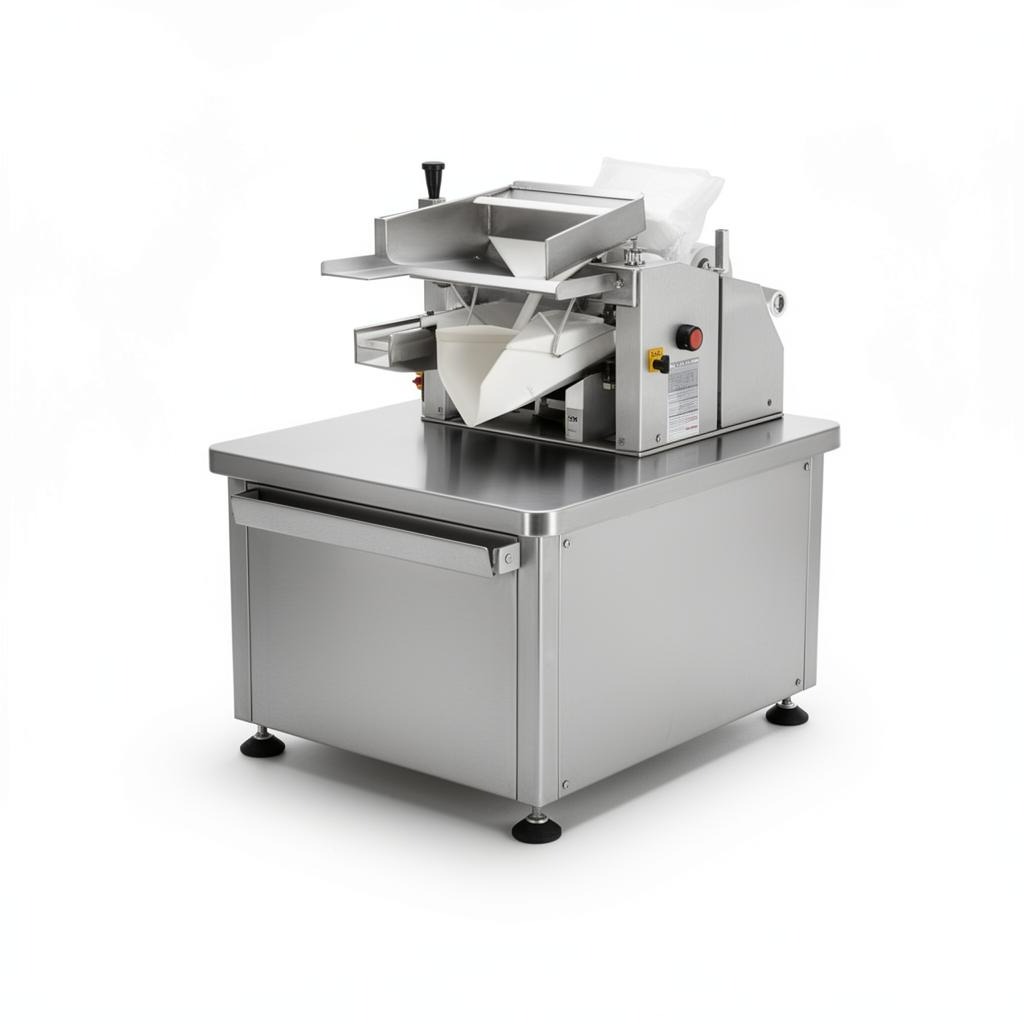

The SEVERN-DT tabletop bagging machine replaces repetitive manual bag opening and sealing with a fast, consistent process using compatible pre-opened poly or paper bags on a roll. Available in 200mm and 300mm maximum bag-width configurations, it offers full signalling capability for integration with automated feeding, counting, weighing and production-line equipment. Specify direct SATO printing or a label-applicator version to suit your identification requirements.
Two Machine Widths
200mm and 300mm maximum bag-width options
Print or Apply Labels
Choose direct SATO thermal-transfer printing or a label-applicator configuration
Automation Ready
Full signalling capability for connection to feeding, counting, weighing and line-control systems
Why Choose the SEVERN-DT Tabletop Bagging Machine?
Increase Packing Output — Pre-opened bags are presented ready for loading, removing time spent opening individual bags and supporting outputs of up to 30 bags per minute when the product and loading method allow.
Reduce Repetitive Manual Tasks — The machine opens, advances and heat-seals each bag consistently, reducing operator handling and helping standardise the finished pack.
Choose the Right Identification Method — Specify an integrated SATO thermal-transfer printer for information printed directly onto compatible bags, or select the label-applicator version when an applied label better suits the pack, data or workflow.
Built for Automation — Full signalling capability allows the SEVERN-DT to communicate with counting conveyors, weigh scales, vibratory feeders, funnels, robots, vision systems and wider production-line controls. It can begin as an operator-loaded machine and develop into a fully integrated bagging cell. Explore our automation and infeed systems for further integration options.
See the SEVERN-DT Bagging Process
Explore quick bag changeover, SATO direct printing or label application, controlled heat sealing and integration with automated product-feeding equipment.
Automation-Friendly Bagging for Poly and Paper Packs

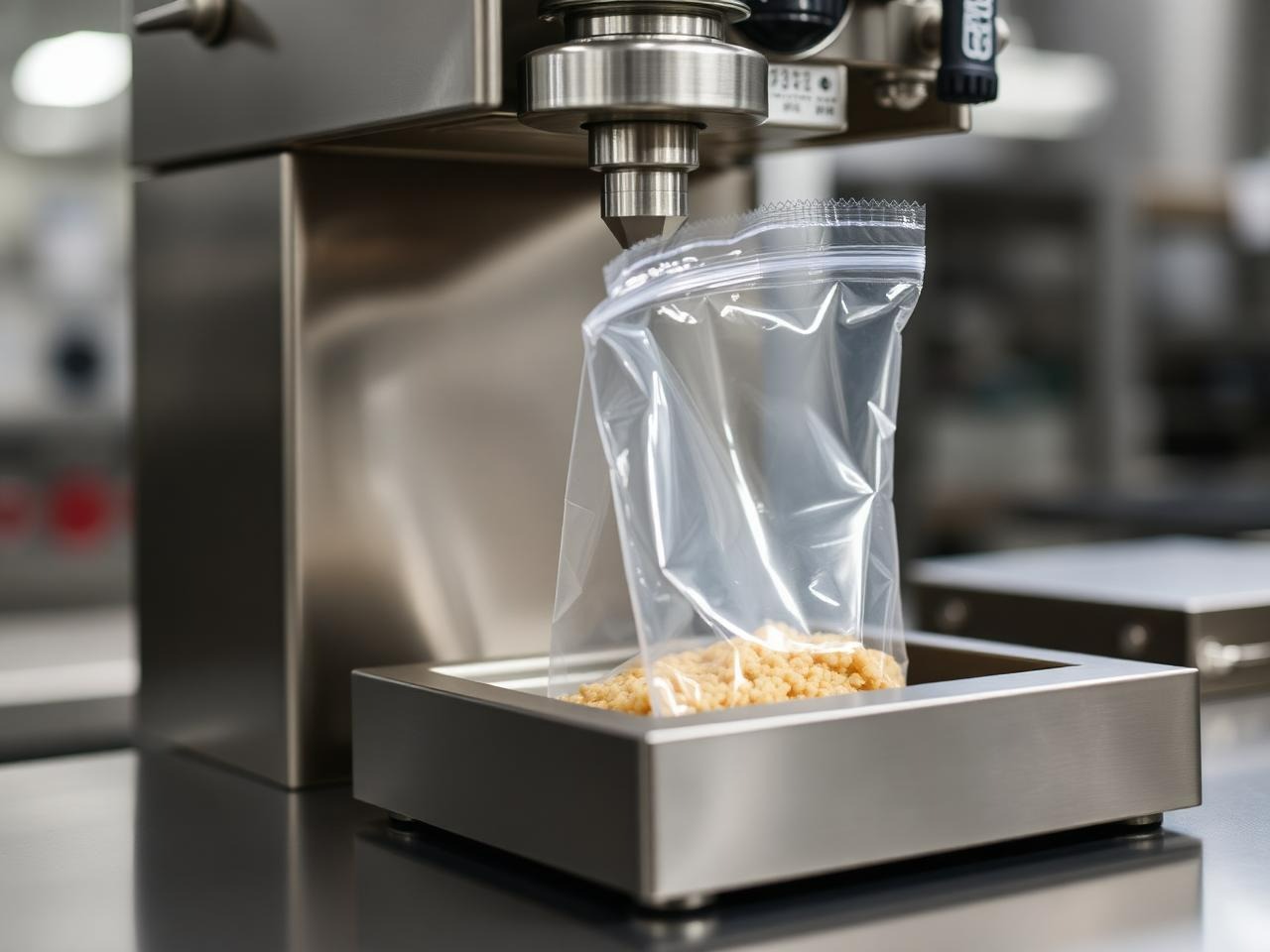

The SEVERN-DT combines bag presentation and controlled heat sealing in a compact system, with full signalling capability, flexible operating modes and a choice of direct SATO printing or label application.
- Runs compatible pre-opened poly or paper bags on a roll
- Up to 30 bags per minute, depending on product, bag and loading method
- Available for bag widths up to 200mm or 300mm
- Seals suitable material up to 150 microns thick, subject to bag construction and testing
- Optional integrated SATO thermal-transfer printer for direct-to-bag information
- Label-applicator version available as an alternative to direct printing
- Full signalling capability for integration with feeding equipment and line controls
- Manual, semi-automatic, automatic, counting, external-trigger and print-related operating modes
- Real-time temperature control supports consistent seal quality
- Quick roll changeover and accessible cover design help minimise downtime
- Semi-automatic, automatic, counting and external-trigger operating modes
- Real-time temperature control supports consistent sealing quality
- Quick bag-roll changeover with minimal setup
- Opening cover provides convenient access for cleaning and maintenance
- Compatible with suitable poly and paper pre-opened bags, subject to application testing
Technical Specifications
Current working specifications. Final requirements will be confirmed against the selected machine configuration.
| Specification | SEVERN-DT |
|---|---|
| Bagging speed | Up to 30 bags/min (product dependent) |
| Bag width | Up to 200mm or 300mm |
| Bag length | 100–1000mm |
| Maximum pass-through | 86mm |
| Maximum weight | Up to 3kg |
| Bag type | Pre-opened bags on a roll |
| Material type | PE up to 150µm; paper up to 90 GSM |
| Specification | SEVERN-DT |
|---|---|
| Power supply | 240V, 1Ph, 50/60Hz |
| Power consumption | Approximately 1.0kW |
| Air supply | 5–7 bar, 20L/min |
| Machine dimensions | 1150 × 700 × 1050mm |
| Machine weight | 50kg |
| Construction | Stainless steel |
| Compliance | CE marked |
Specifications are indicative and may vary according to machine size, printer or label-applicator configuration, bag material and automation requirements.
For Components, Parts, Kits and Small Packaged Products
The SEVERN-DT is well suited to manufacturing, distribution, fulfilment and contract packing operations handling fasteners, hardware, automotive and electrical components, plumbing parts, medical products, kits and other small items.
.png)
.png)
.png)
.png)
